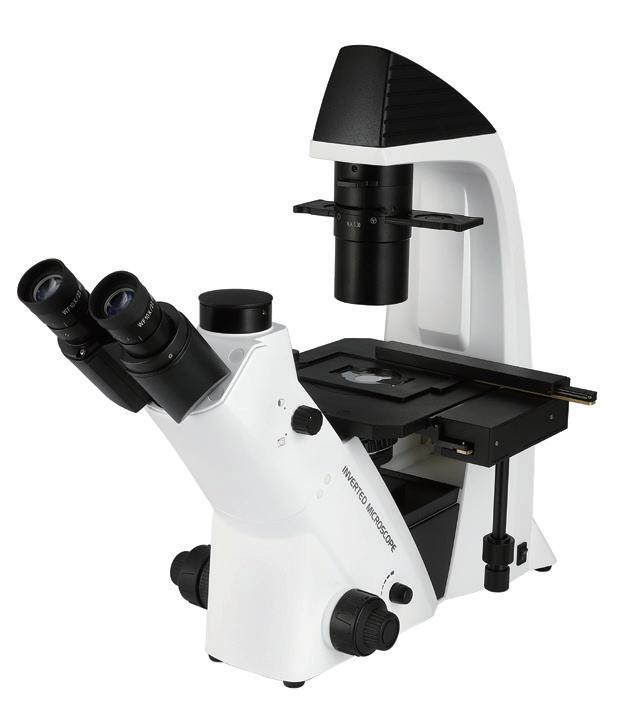

YSXWJ-DZ400 Inverted Binocular Microscope

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Overview
LWD Infinity Plan Objectives
LPLAN 10×/0.25
LPLAN 20×/0.40
LPLAN 40×/0.60
W.D.=8.3mm
LWD Infinity Plan Phase
Contrast Objectives
LPL Ph P 20×/0.40
Eyepiece
WF10×/22mm(23mm is optional)
Eyepiece head
Inclined 45°, interpupilary distance: 48-76mm,,Light distribution (both): 100: 0
(100% for eyepiece)80:20 (80% for trinocular head, and 20% for
eyepiece)
Annular Spot
20×/ 40× ( for both 20× and 40× )
Mechanical Stage
Stage size: X×Y: 210×241mm, Round slide size:Φ118mm
Attached mechanical stage
Culture Dish
Holder 54mm
Condenser
Long working distance, Quickly detachable , N.A.0.3,
Working distance: 72mm (with condenser),195mm(without condenser)
Koehler Illumination
Halogen lamp 6V/30W (input voltage:100V~240V)

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
