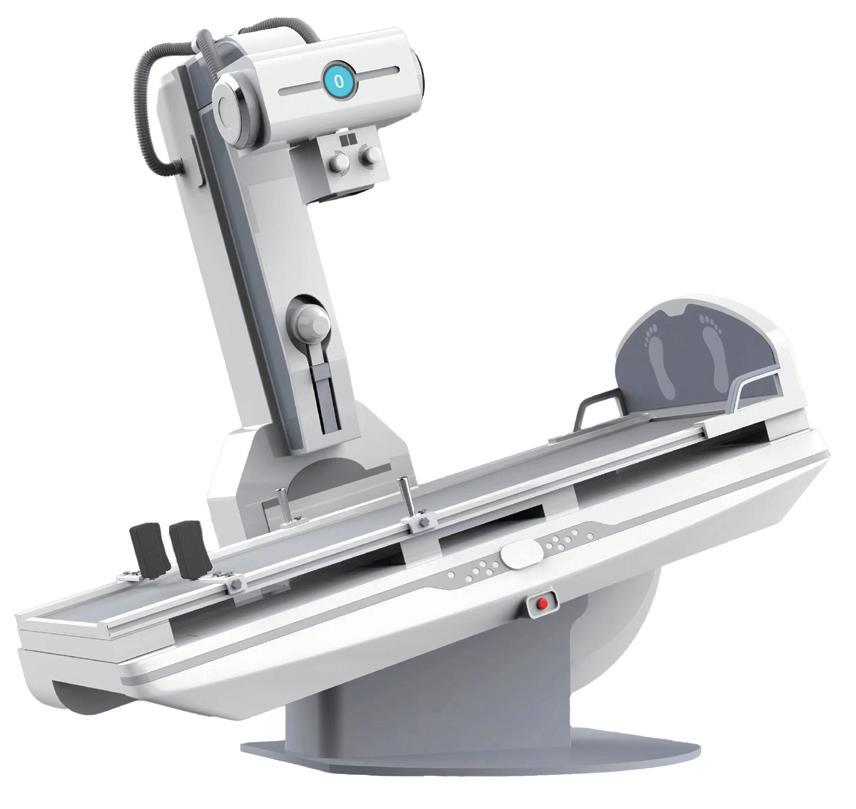

YSX-RF80E 80kW Digital Radiography & Fluoroscopy System

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

YSX-RF80E
Power supply: 380VAC
Power: 80kW
mA - Radiography: 10~1000mA
Continuous fluoroscopy: 0.5~6mA
Pulse fluoroscopy: 10~40mA
kV - Radiography: 40~150kV
Fluoroscopy: 40~125kV
Focal point: 0.6mm / 1.2mm
Target Angle: 12°
The anode heat capacity: 300kHU
Detector Size: 17X17 inch
Scintillator: CSI
Pixels: 3072*3072
Pixel Pitch (μm): 139
Resolution: 3.6
AD Conversion: 16

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
