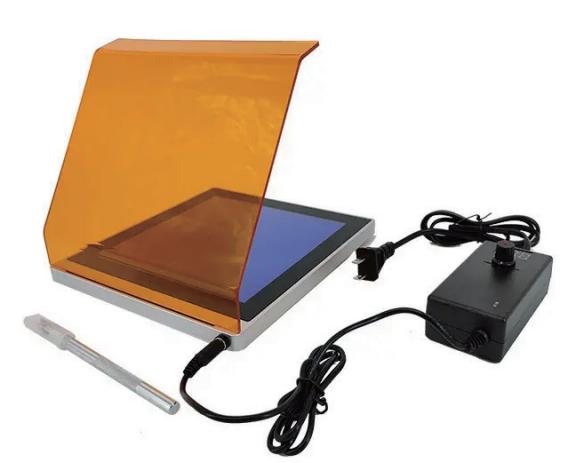

YSTE-BLT03X Blue LED Transilluminator

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Short Description:
applies to observe and analyse nucleic acids, proteins and other substances in the life science research field. The design of gel cutter is ergonomics with comfortable opening and closing angle. The design of LED blue light source makes samples and operators more safer, as well as more easier to observe gel cutting. It is suitable for nucleic acid stain and other various blue stains. With small size and space saving, it is a good helper for observation and gel cutting.
Specifications
Dimension (LxWxH)
190x205x150mm
Filter Size (LxWxH)
180X205X220mm
Viewing Range (LxW)
150x150mm
Max Cutting Gel Size
150x150mm
Uniformity
≥90%
Brightness Adjustment
Knob Stepless Adjustment
LED Lifetime (hours)
≥30000hs
Emission Maxima (nm)
470nm
Max Power
20W
Input Voltage
AC100-240V
Description
YSTE-BLT03X It is used for light source instrument for the observation and analysis of nucleic acids, proteins and other substances in the life science research field. The blue light transilluminator is designed in accordance with ergonomics, the opening and angle are comfortable. LED blue light source design makes samples and operators safer, and more on the observation of gel cutting. Small size and space saving, it is good for observation and gel cutting.
Feature
1. Uniformity:≥90%,uniform excitation, no flicker when taking pictures, clearer bands.
2. Easy to dissipate heat, it works stably for long time.
3. Lighter, ultra-thin and the thickness is about 15mm.
4. Safer: The blue light filter can effectively filter the illuminance of the blue light, without goggles and masks, no damage to the human body, and easier experiments.
5. Easy to clean: the blue light filter and the cabinet are designed separately for easy cleaning.
6. Adjustable brightness for easy observation.

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
