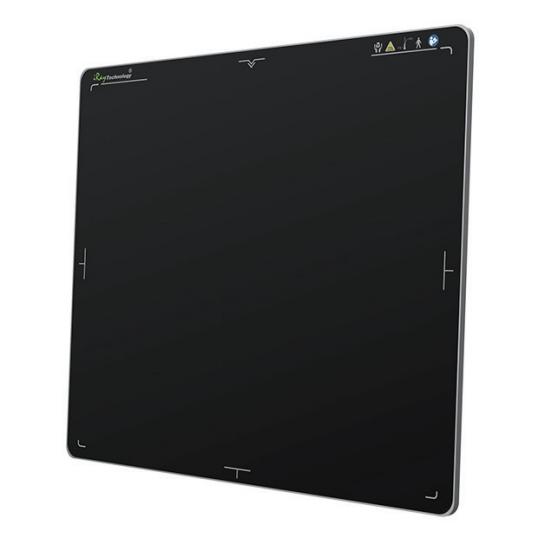

Wireless High-Performance Cassette-size Wireless a-Si Flat Panel Detector YSFPD-M1417X

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

YSFPD-M1417X
Detector Technology: Amorphous Silicon
Scintillator: CsI
Active Area (inch): 14 × 17
Pixel Matrix: 2500 × 4300
Pixel Pitch (μm): 100
Limiting Resolution (lp/mm): 4.3
AD Conversion (bit): 16
Battery Life (h): 8.5
WIFI: 2.4G and 5G, IEEE802.11 a/b/g/n/ac
Trigger Mode: AED (Optional) / Software

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
