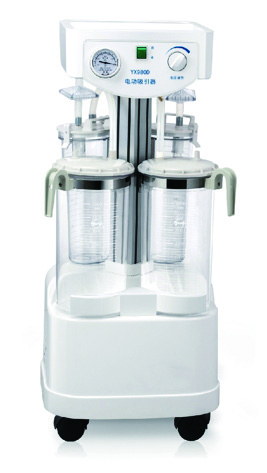

Surgical sunction unit with large capacity YSXYQ-98D

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Surgical sunction unit with large capacity
Product Overview:
1. Oil-less piston pump,maintenance free,flow rate can reach to over 80L/min,rapid vacuum rising.
2. Overflow protection device prevents liquid from entering into the inner pipe.
3. Air filter protects pump from being polluted.
4. Transparent and high intensity polycarbonate plastic jar,high capacity and easy to clean.
5. Can select empty container fast during operation by change-over valve,rinsing cup is for placing catheter during operation.
6. The accessory box on the back of the case is for laying foot switch,power cord,etc,which is more convenient during movement or storage.
Specification:
Max vacuum
≥0.09MPa (680mmHg)
Adjustable vacuum range
0.02MPa~0.09MPa
Flow rate
≥80L/min
Noise
≤60dB(A)
Jar
4000ml×2+2000ml×2(PC)
Power supply
AC220 50Hz
Input power
280VA
Dim
44cm ×50cm×99.5cm
G.W./N.W.
25kg/22kg

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
