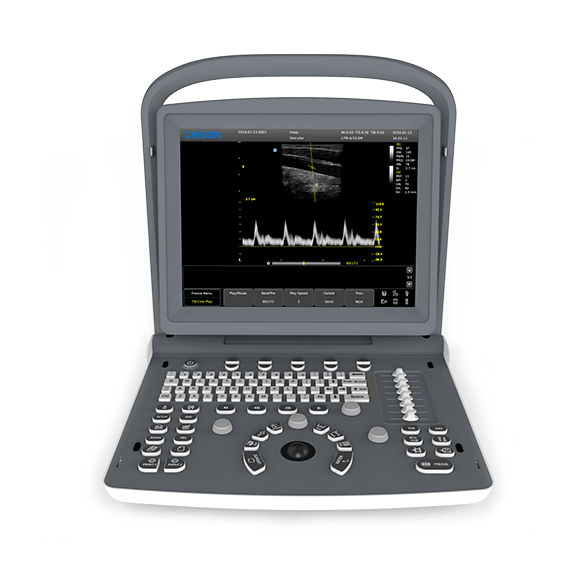

Portable B/W Ultrasound CHISON ECO2

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

CHISON Ultrasound - Portable B/W Ultrasound CHISON ECO2
Advanced Imaging Technologies
ERGONOMICS
• Rotatable LED(0~30°):tailer to different viewing angles
• Ultra-compact & Ultra-light
• Easy to carry
• Keyboard : For easy and quick access
• Dedicated cart TR 9000
• Streamlined workflow
ECHO
• Advanced technologies:
i-Image(Intelligent image optimization)
THI(Tissue Harmonic Image)
SRA(Speckle Reduction Algorithm)
Compound imaging
• Full digital beam-former
• Trapezoid
• Automatic PW trace
• Chroma
• Full screen display mode
• AIO(Automatic image optimization)
ECONOMIC
• The latest platform & more advanced chip-set:brings you better image quality and features at less cost in a more compact box
• Support PC printer, reduce investment & day to day paper cost
• 8G memory card
• 320G harddisk (option)
• Vehicular Charging
ECO-FRIENDLY
• Less radiation
• Less power consumption
• Longer usage life:LED
• Longer battery standby time:>2 hours
Scanning Depth
240mm Max (depend on the probe types)
Probe Frequency
2.5 MHz - 11.0 MHz (Depend on the probe)
Cinema Loop
256 frames
Zoom
4 steps
Software Packages
Dedicated measurement package: General ,OB/GYN, URO,Cardiac, Vascular, Small parts
Archives Management
Patient information management, images record, exam report
Power Supply
AC 100V-240V, 50Hz- 60Hz
Standard Configuration
1 probe connector, 3 USB ports, VGA port, Video port, LAN port,
Full Screen Display Mode, i-Image,Chroma, SRA, Compound imaging,THI,
8G memory card, PW Mode
Option
2 probe connectors, DICOM 3.0, Water-proof keyboard cover, Carrying Case (BG
-100 ),Cart TR 9000, Support PC Printer, Video Printer, Built-in Battery

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
