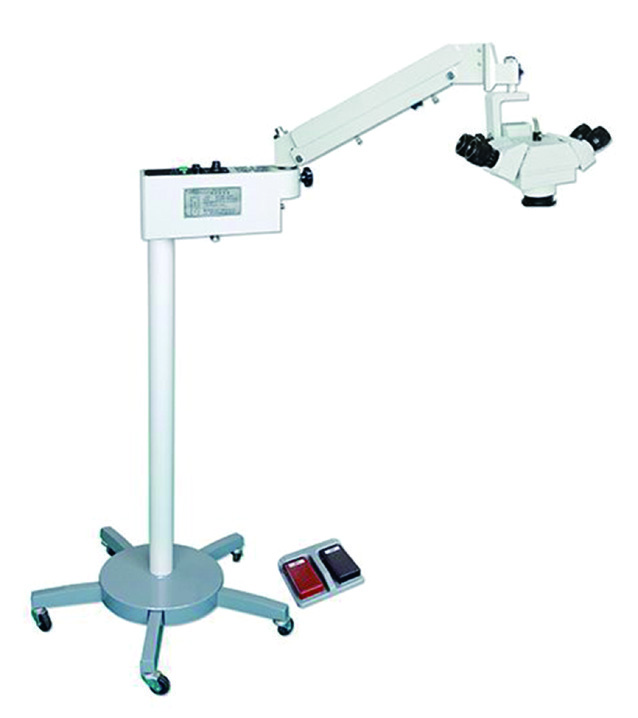

Operating microscope YSOM-X-4C

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

surgical microscope YSOM-X-4C
Main Performance
1.1 Optical Performance
Working distance
Magnification
View Field
Primary microscope
192mm
10X
Φ27.5mm
Secondary microscope
192mm
4X
Φ39mm
Diameter of lighting light spot Φ40mm
Illumination not less than 15000Lx
Adjusting range of eye distance 55~75mm
Adjusting range of ocular visibility ±5diopter
1.2 Mechanical Performance
Lowering and lifting range of frame, adjusted by spring arm 200mm
Electric focusing 40mm
Electric micro-focusing speed 3mm/s
Adjusting range at leveling direction ±100o
Max turning radius of cross arm 800mm
1.3 Electricity Performance
Power supply AC220V 50Hz
Bromine tungsten-arc lamp

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
