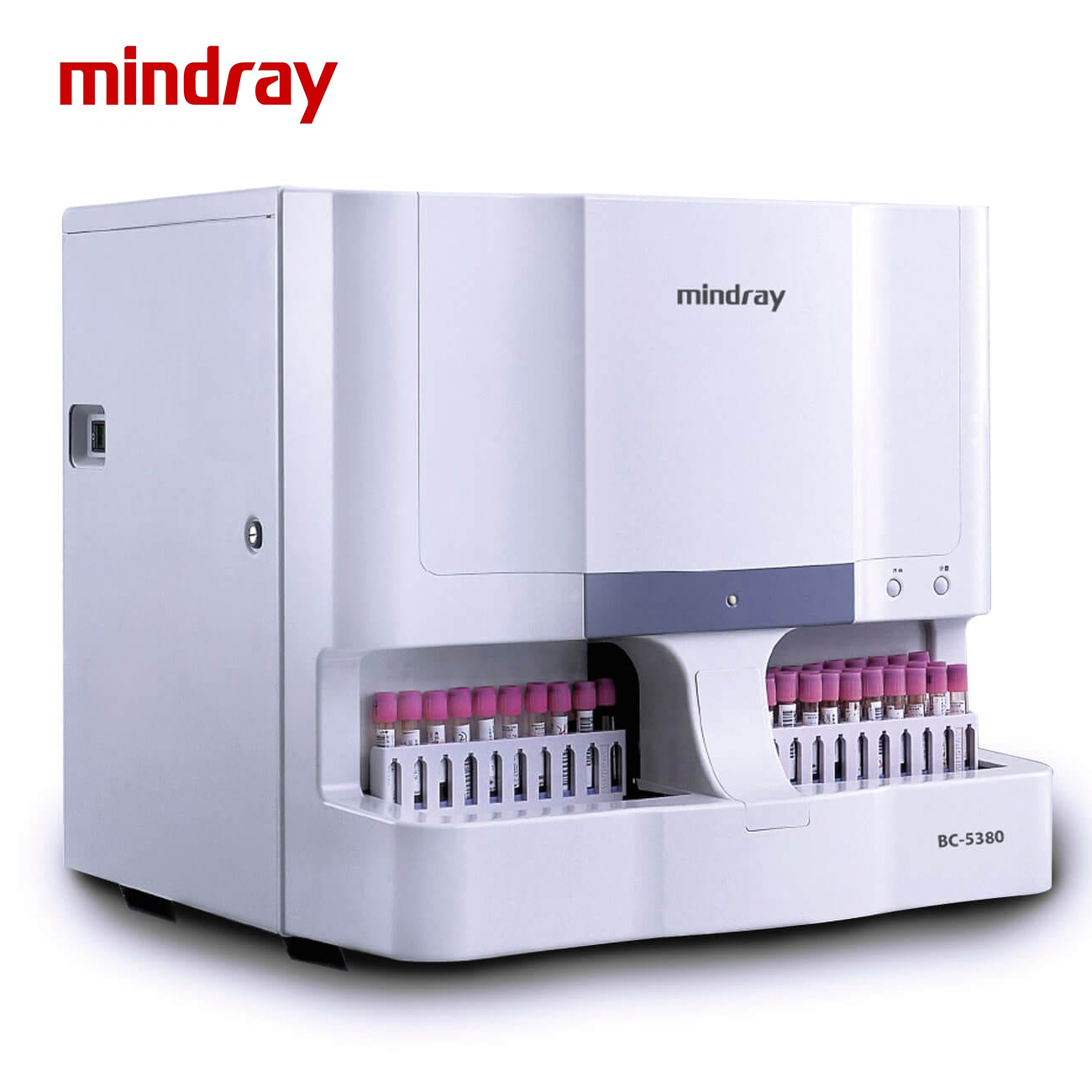

MINDRAY BC-5380 5 Part Diff CBC Auto Blood Hematology Analyzer

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Model: BC-5380
Parameters: 27
Histograms / scattergrams: 3 / 1
Sampling mode: Autoloader; closed tube
Autoloader throughput: Up to 60 samples/hour
Closed-tube throughput: Up to 50 samples/hour
Whole-blood sample volume: 20 µL
Prediluted sample volume: 20 µL
Test modes: CBC; CBC+DIFF
Data storage capacity: Up to 40,000 results including numeric and graphical information
Communication: LAN port supports HL7 protocol
Operating temperature: 15~30 °C
Operating humidity: 30~85%
Operating air pressure: 70~106 kPa
Power requirement: AC 100-240 V; ≤300 VA; 50/60 Hz
Weight: ≤65 kg
Exact BC-5380 own technical sheet visually verified. Tiny performance table and analyte abbreviations omitted rather than relying on OCR.

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
