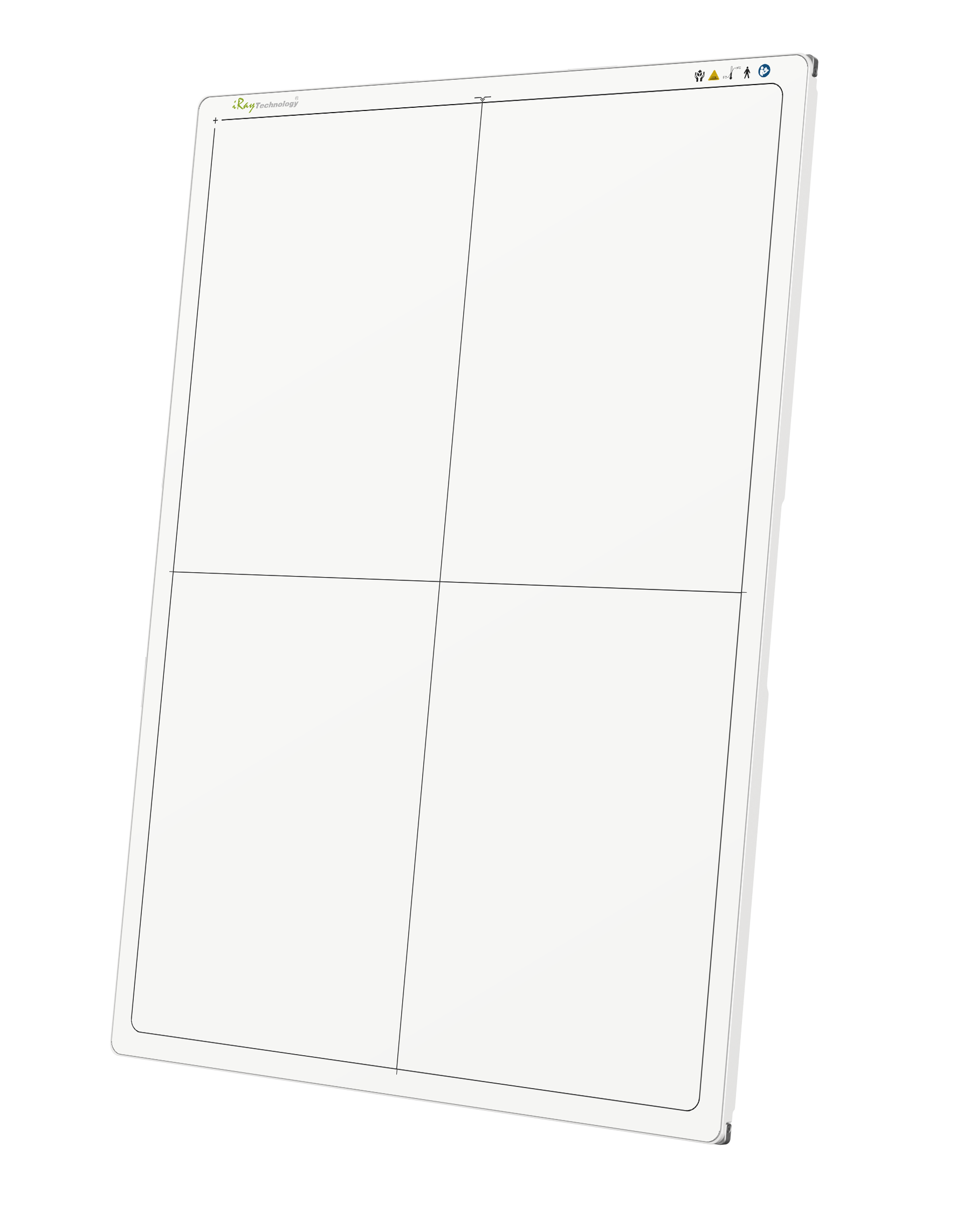

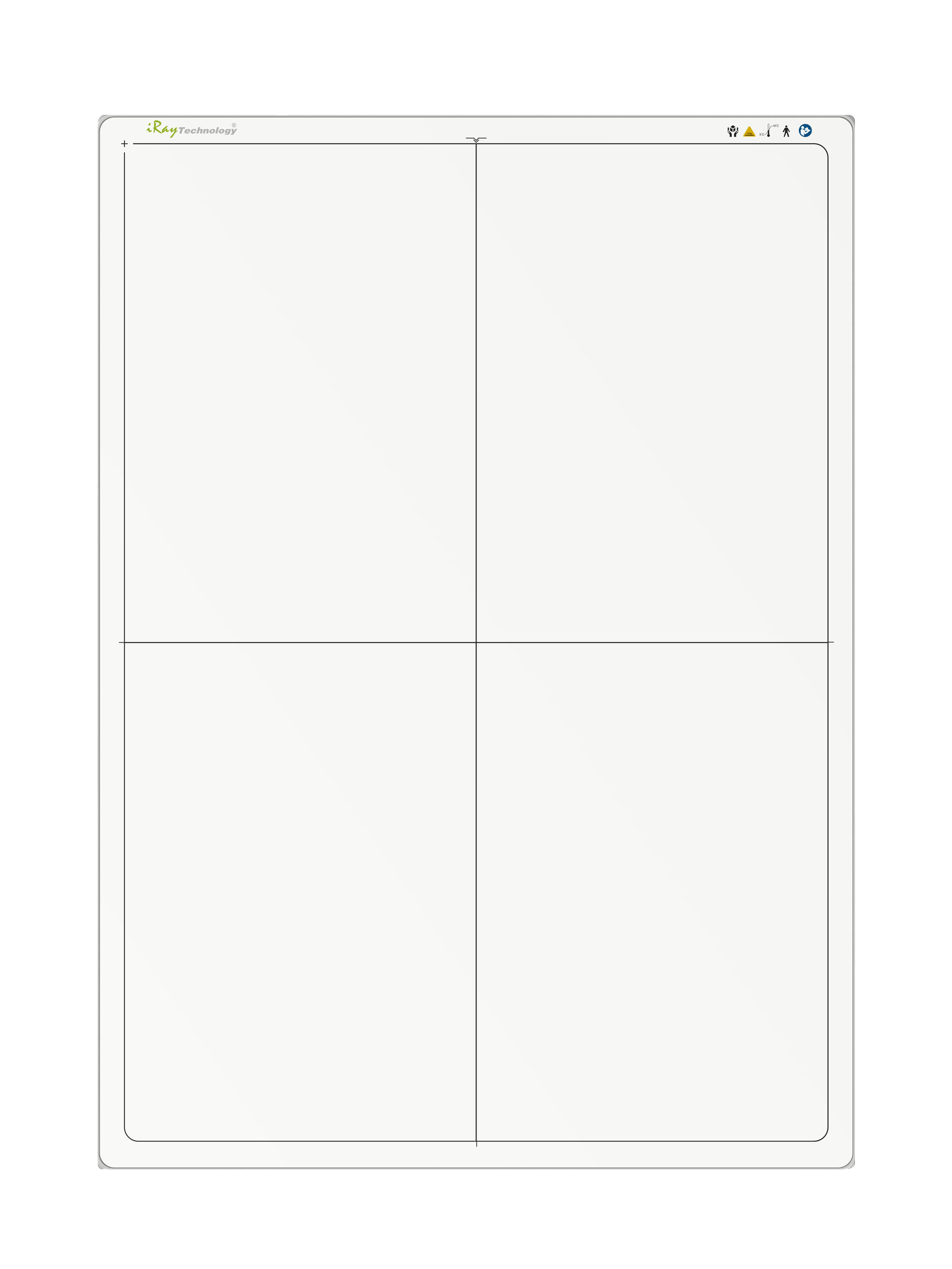

IRAY Mars 1724V Wireless 17×24 a-Si Flat Panel Detector

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Mars 1724V is a smart 17×24-inch wireless FPD for radiographic imaging. It features a 139μm pixel pitch with direct deposition CSI, reliable AED, dependable wireless performance. With it’s exceptional image quality the Mars1724V is an excellent choice for DR systems.
Features
Stable iSync+ Automatic Exposure Detection
139μm pixel pitch with 16 bit ADC for more image details
Supports a fast and efficient workflow
Direct deposition CSI for better image quality with lower dose
Removable handles
Mars 1724V
Detector Technology
Amorphous Silicon
Full Image Time (s)
6
Scintillator
CsI
Dimension (mm)
460 x 640 x 15
Active Area (inch)
17 × 24
Weight (kg)
5
Pixel Matrix
3072 × 4352
Static Loading (kg)
150 Uniformly
Pixel Pitch (μm)
139
Ingress Protection
IPX1
Spatial Resolution (lp/mm)
3.6
Operating Temperature (℃)
5~35
AD Conversion (bit)
16
Storage & Transport
Temperature with Package(℃)
-20~55
Battery Autonomy (h)
8
Operating Humidity(% RH)
10~90 (Non-Condensing)
WIFI
2.4G and 5G
IEEE802.11 a/b/g/n/ac
Storage & Transport Humidity with Package (% RH)
5~95 (Non-Condensing)
Trigger Mode
AED (optional) / Software

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
