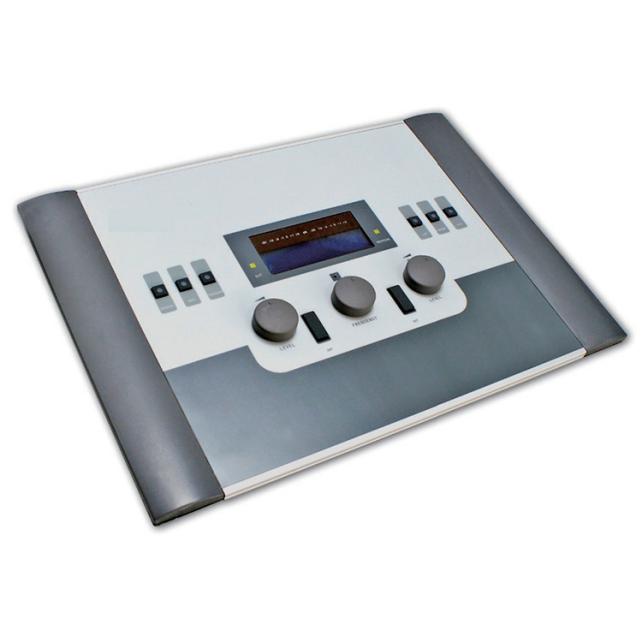

Ear Audiometer YSTLJ-CH33

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Audiometer YSTLJ-CH33
Specification
Head Phone: TDH-39P(AC), B7 I (BC)
Power Supply: 230V AC transformer. 50Hz
Dimensions: 45x 30x 9.5cm
Packing: 51x40x 27cm
Weight: 1.775kg
Microphone: Internal
Technical Data:
Out put: Air conduction, Bone conduction, Free field
Frequency: AC BC
125Hz -10 - 90HL -10 - 45HL
250 Hz -10 - 100HL -10 - 45HL
500-750Hz -10 - 120HL -10 - 70HL
1000-3000Hz -10 - 120HL -10 - 70HL
4000Hz -10 - 120HL -10 - 60HL
6000Hz -10 - 110HL -10 - 60HL
8000Hz -10 - 110HL
Masking: Pure tone& with contralateral white noise test
Tests: AC test, BC tests, speech test, speech with noise test
Tone: Continuous pure tone, pulse tone, warble tone
Precision: Sound pressure: ± I dB
Frequency: better than 1%
Distortion: Air conduction: 2.5%, Bone conduction: 5%

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
