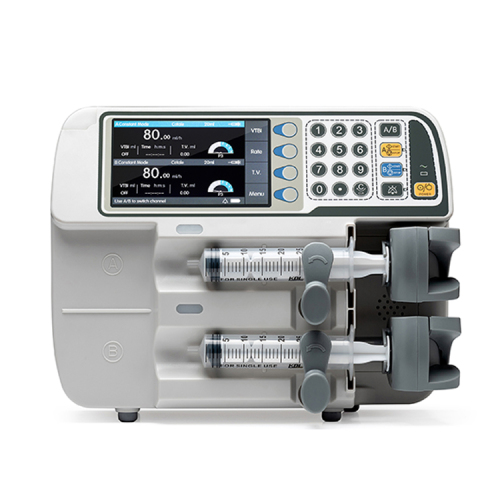

Double channels Syringe pump YSZS-620

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Double channels Syringe pump YSZS-620
Specifications:
Features:
Infusion Mode
Micro and continuous injection
1.Double CPU- Safter infusion
2. Numberic Keypad- More Convenient
3. Occlusion, Alarm, brightness level adjustable
4. Optional injection modes
5. Color LCD, user friendly
6. 3000mAh Li-ion Battery, backup time at least 10hr
Syringes
5mL,10mL, 20mL, 30mL, 50/60mL syringes
and self-defined for customer's brand.
Rate Unit
(including drug weight unit)
mL/h, mg/h, µg/h,
µg/kg/min, mg/kg/min, µg/kg/h, mg/kg/h.
Flow Rate Range
5ml syringe: 0.01-60mL/h
10mL syringe: 0.01 ~ 300 mL/h
20mL syringe: 0.01 ~ 400 mL/h
30mL syringe: 0.01 ~ 600 mL/h
50mL syringe: 0.01 ~ 1200 mL/h
Increment
0.01 mL/h steps (for settings from 0.01 to 99.99 mL/h); 1 mL/h steps (for settings from 100 to 999 mL/h)
Volume Limit
0.1~ 9999.9 mL and empty mode available
Flow Rate Deviation
≤ ± 2%
Purge Rate
5ml syringe: 60mL/h
10mL syringe: 300 mL/h
20mL syringe: 400 mL/h
30mL syringe: 600 mL/h
50mL syringe: 1200 mL/h
KVO Rate
0.01 ~ 5 mL/h (adjustable)
Bolus Mode
Bolus rate adjustable, Automatic
Occlusion Pressure
Pressure detection device with
10 sensitivities setting, 10 ~ 140KPa.
Parameter Changing During Syringe
Yes, VTBI and Rate can be changed
History (Event Log)
10000 events can be stored and exported
Drug Library
Hundreds drugs can be imported and exported.
Alarming and Button Sound Setting
10 levels setting
Display
3.5 "FTT color LCDdisplay
Keypad Mode
Numerical button
Keypad Lock
Yes, optional
Power Source
AC: 100V ~ 240V, 50Hz/60Hz, ≤ 25VA
Battery
Rechargeable Lithium battery: DC11.1V, 3000mAh, workinghours≥7 hours at 5mL/h, remaining battery displayed.
Classification
Class Ⅱ, CF, IPX4
Dimensions and N.W.
340mm x 200mm x 158mm; 2.1kg
Accessory:
Power cord
1 pc
Operator Manual
1 pc
Packing:
Inner box
386x230x195mm
Carton
480x400x425mm(4sets/CTN)

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
