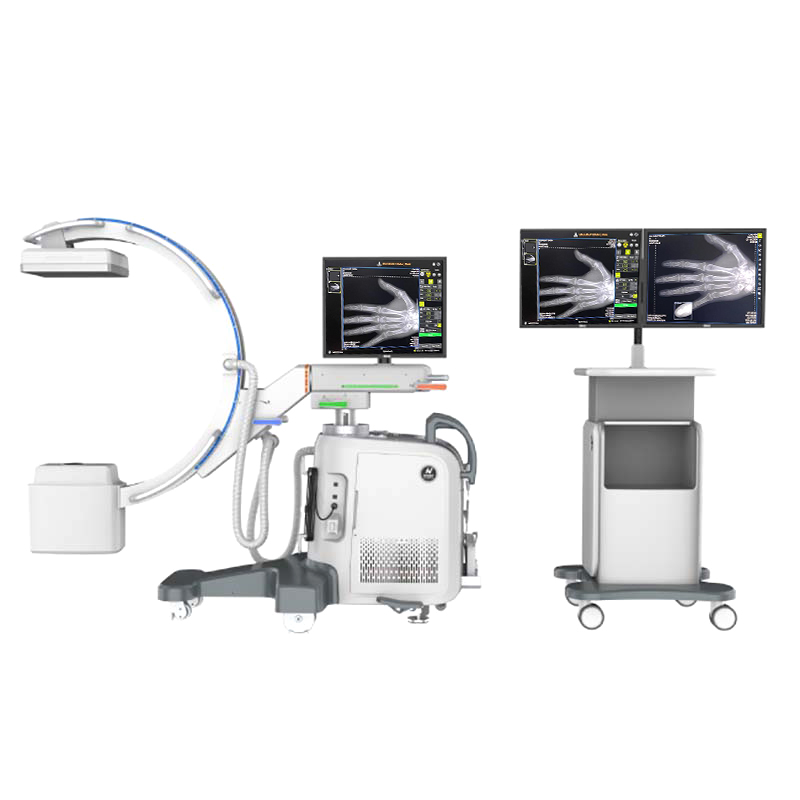

Digital C-arm X-ray System with Flat Panel Detector YSX-C605

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Model: YSX-C605
Electric source: 110 VAC / 220 VAC
Power: 5 kW
Generator voltage: spot / pulse: 40~125 kV
Generator voltage: continuous: 40~110 kV
Continuous current: 6.3 mA
Pulsed current: 32 mA
Digital spot current: 100 mA
Exposure time: 10~1600 ms
Current-time product: 0.2~100 mAs
X-ray tube type: Rotating
Focal spots: 0.3/0.6 mm
SID: 1000 mm
Free space in arc: 784 mm
Depth in arc: 640 mm
Orbital rotation: 150° (117°/-33°)
Lateral rotation: 360° (±180°)
Wig/wag: ±15°
Horizontal travel: 200 mm
Vertical travel: 400 mm
Two detector configurations printed without confirmation of selected configuration. All detector-specific rows omitted; shared system/generator/tube/arm rows visually verified.

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
