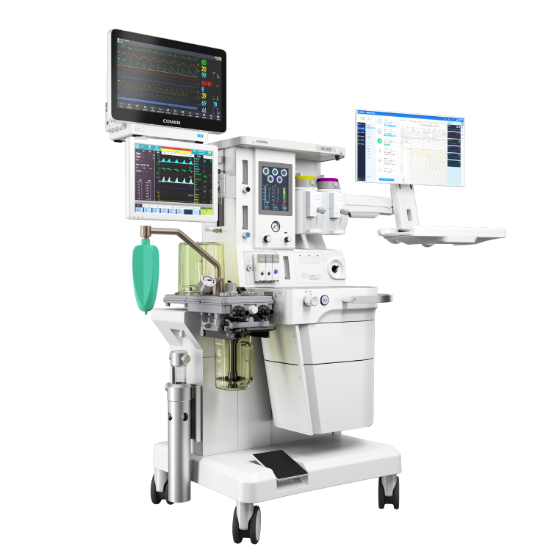

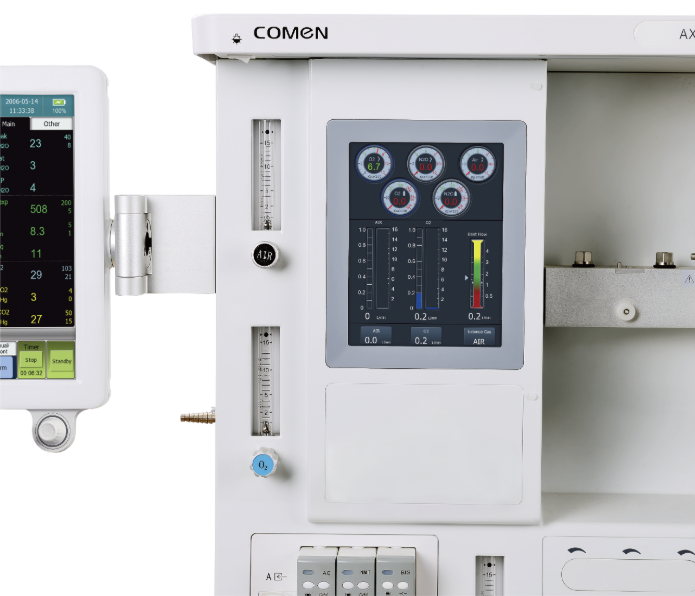

COMEN AX-900 Medical Anesthesia Machine

Request configuration, accessories, documentation and supply terms for this model.

Supplier technical information: confirm the configuration before purchasing.

Medical equipment YSAV330C Anesthetic machine for surgery
Anaesthesia workstations include advanced care stations that can administer gases and other inhaled anaesthesia medications to facilitate surgical intervention.
Advanced anaesthesia workstations are also capable of providing respiratory support and enhanced patent monitoring capabilities.
Specification
PRODUCT NAME
HOSPITAL ANESTHESIA MEDICAL EQUIPMENT
Application:
Adult and Children
Respiratory rate:
4~60bmp
Power:
220V±10%,50Hz±1%
Working Mode:
For the Closed System, Semi-Closed System and Semi-Open System
Oxygen Flsh:
35L/min--75L/min
Working Mode:
Manual Control or Automatic Control
Respiratory Modes:
IPPV,SIGH(Deep Breaths/Per Time After Breathing 60 Times), SIMV/F/2,
PEEP (+ 0.5KPa -- + 2KPa), SIPPV
Tidal Volume:
30~1500ml
Power:
220V±10%,50Hz±1%
Parameters Alarms:
Upper and Lower Airway Pressure Alarm; Upper and Lower Tidal Volume Alarm; Lack of Oxygen Alarm; Apnea; Power Outages
I/E Ratio: 3; 1-1:4 Adjustable
3: 1-1:4 Adjustable
Vaporizer:
Two High Precise Vaporizers, scope of Concentration Regulation: 0.2 -- 5%VOL

Specifications are sourced from the authorized supplier catalog and must be confirmed for the quoted configuration. Regulatory documentation is verified by model and destination country.
